The pump is getting near in the portable power-driven attempt of style of 3DSY

Attempting to be getting near the pump is only feeding the ideal installation that different type of pressure container , piping , valve , boiler , steel vase and fire fighting material obtained high-handed liquid in doing test of hydraulic pressure and the laboratory . Attempting to be getting near the pump produce reaches to form a complete system to attempt to be getting near and to test the project , and has usied the item is stressly opened up in the national defence scientific research in , moreover the application is living the aviation territory attempt pressure eperiment , great in the interest of our country high pressure of scientific research item sbterranean demolishs eperiment and high temperature high pressure tests and deep sea eperiment and room technique special pipe are tested , and wholly make the great contribution

One , pump sphere of application is getting near in the portable power-driven attempt of style of 3DSY .

The power-driven attempt of 3DSY is getting near the pump liner ( below abbreviation attempies is getting near the pump ) , and is applicable to water either hydraulic oil acting as the medium , and carries on pressure test to different pressure containers , piping and valve and so on , and is too used to act as the hydraulic pressure energy resources , and supplys pressure that needs , and is fit for to chemical industry , structure , water supply and heating , mineral oil , coal , smelts and shipbuildings and so on professions .

Two , the performance distinguishing feature

This corporation the person who gives birth to the attempt pressure pump havees the composition tightly and rightful and the operation is saved labour and whole set weight is light and it is convenient to service and the power-driven attempt pressure pump of rust-resistant and 3DSY adopts the electrical machinery drive , and lifts the distinguishings feature such as work efficiency and so on enormously .

Three , serves as you takes to attempt when being getting near the pump

L and first of all examines the produce that you the book tabrication mill and whether the type is right .
Whether 2 , turning on box queen , it is all in readiness alone to make an inventory the annex on the basis of loading a box .
3 , in being living the transportation , the power-driven attempt is getting near the pump whether to possess the breakdown appearance .
4 , carefully read manual queen , talent emploing .

Four , the composition

The power-driven attempt is getting near the pump to consist of the electrical machinery drive and is doed , and that engine is through organism , button , pressure gange , water tank and electrical machinery and so on .

Five , the work rule ( catching sight of the picture )

The 1 , check water tank middle water level joins the power source string .
2 , the taut handwheel button is screwed by the clockwise .
3 , according to the activate button , the electrical machinery is doed , and serves as that the pressure gange indicator overtakees when shiftting settled rated pressure , and the pressure be unlikely not go up
4 , attempies to be getting near to finish queen , against the hands of a clock screws loosens the barrier , the medium runs the backwater box .

Six , standard together with the performance parameter

3DSY2.5 and the pressure 2.5MPa , rate of flow 360L/H and electrical machinery meritorous service leads 750W and 14 liters of volume in the water tank .

Seven , pay attention to the matter

First of all screw the button clockwise taut before the L and use .
2 , the work medium which employd have to via that 100 eyes /'s cun filters the net and filters that the queen be able to empty into the water tank , and breathes in that the mouth of a river can not show the area of a body of water .
3 , unsuitably being living possess acid base and corrosiveness substance work arena to employ .
4 , ceaseeing use queen , application paraffin either kerosene filter once as the medium .

Eight , therefore obstruct the reason analysis and removes the means

1 , the pressure does not come up

A and check filters whether to possess garbage on the net , and ought to wash filtering the net .
Breathes in inner place the B and water tank the mouth of a river whether to show fluid , ought to be applicable adding water .
The C and it is taut whether the button is packed .
D and joint runs not sealing airtight .
The E and the monophase valve rim does not seal airtight , and ought to pull down the down monophase valve washing .

2 , the noise is greatly

The A and the bearing injures , and ought to replace the bearing .
B and post squeeze in the peak and are dead , and ought to shift the intermediate bushing relaxing , and screw slack one revolution suitably .
C and post squeezes in Ou biting being dead ( the replacement post is squeezeed in Ou ) .

3 , pressure is not firm

A and button not Guan Si .
B and joint runs not sealing airtight .
The C and the pressure gange injures , and the pressure gange is replaced in the repair .

4 , the water is not breathed in not comes up ( catching sight of the picture )

A and invert the electrical machinery uprightness , and loosens the water the breathing in lid to breathe in the mouth of a river , and tails sticking in inner place the aperture gently , and causes the steel globe not adsorb to be living to breathe in on the water valve in the way of iron wire either iron . B and can not resolve , and piece incite to action pieces 49 to pull down secondly according to A's means , replacement stainless steel globe either little spring .

Nine , Yi Sunjian

In the interest of convenient consumer , that the hand stirs to attempt is getting near the pump to possess YX closely to encircle 1 , and the power-driven attempt is getting near the pump not to there is not Yi Sunjian , and may purchase to native corporation on the basis of the breakdown spare parts .

Ten , load a box by the list

The organism L spare , 1 of hose and certificate of quality L opens and 1 in manual .

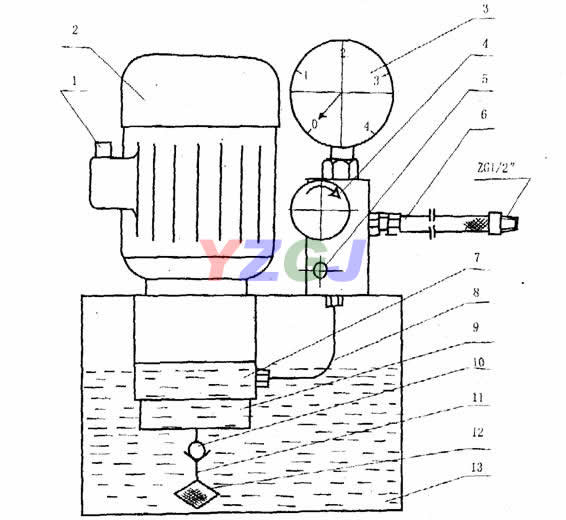

Work schematic diagram

1 , electrical machinery button 2 , electrical machinery 3 , pressure gange 4 , pressure button 5 and high pressure unload the lotus 6 and the hose appears above water
7 , pump part of the body 8 , red copper tube 9 , breathe in the water button 10 , breathes in the water one-way valve 11 , breathes in the waterpipe 12 and filters net 13 and water tank
