The produce performance reaches such and employs the directions
One , the summary :
It is refering to that the Japan same product design manufactures that set that this mill gives birth to flexs Guan Ji , the hydraulic pressure section unloads lotus organization and oil filter in the way of speed hand pump moreover installation overload , therefore that machines and tools possess that the composition is rightful , weight is light and the bulk is little and service life the person who develops distinguishing feature , that the hand in the interest of structure , chemical industry , water supply and heating , mineral oil and coal and so on department ideals stirs flexs the ruing means .
Two , the performance parameter :
Type
|
The largesttest work pressure
|
The largesttest work stroke
|
Crooked angle
|
Fuel tank capacity ( 15#'s machine oil )
|
WQJ-G60
|
45MPa
|
250mm
|
90 <= A<180s are
|
1.2Kg
|
WQJ-G90
|
50MPa
|
320mm
|
90 <= A<180s are
|
2.5Kg
|
WQJ-G108
|
63MPa
|
415mm
|
90 <= A<180s are
|
4Kg
|
Three , the use means
The L and screws the button taut and bears wheel and matrix together with is flex the work contact lubricious fat of place applying .
2 , on the basis of the curve pipe size , chooseing the relevant curve standard , and pack , and shall two bear to in turn the relevant dimensions trough to flexs the standard , and particularly pay attention to bearing the wheel to place at the wing plank inner place the relevant dimensions opening of edge on the piston rod peak , " the largesttest outward opening of standard . Reason by analogy with this . Avert that two to bear the iing turn place not symmetrical , and build breakdown matrix and works .
3 , places behind the good work shall go up on the wing plank lid , emploing the fast pump earlier causing to flex to mould pressing work spare , emploing the slow pump again being getting near up the requireing angle by the work , unfolding the barrier afterwards flexing well , the work piston is incited to action to reduce voluntarily , and opens the wing plank , and brings out the work .
Four , the matter is pay attention to :
1 , first of all examine whether oil inner place the fuel tank is adequate before the use , in case that the defect ought to plus is packed .
2 , dos precedingly button - stably will Guan Si ; If not the pressure is not strike , and topping-up shail is squeezeed in screwing the pine , in order that the fuel tank is aerate .
The 3 , pipe flex outside diameter is surely asked for together with flexs the hollow trough application of standard , if not the work be able to come into being hollow shrunken appearance either by matrix gos up to crack .
The weld line that 4 , the soldering was rund is living the inside side being in the upright outside of crooked part either . Two in the crooked process is beared that the wheel will turn moreover and the work to be living to bear to slip inner place the hollow trough of wheel , in case single does not stir ought to cease the operation .
5 , acting clean the keeping in good repair work of good installation in normal times , it is to be clean to lubricate , and will via stably filtering the net over 80 eyes to filter , and the oil is filtered the unit and will fixed a day to wash
6 , native engine employs the machine oil of 15 .
Five , Yi Sunjian
In the interest of convenient consumer services , incite to action installation Yi Sun to seal airtight in the piece spare parts the placeeing sashs .
L and YX's mould closely encircles D28 ( 1 ) , D16 ( 2 ) .
Removes the means therefore six , the block that probably happens reaches :
Therefore block
|
Come into being reason
|
Remove means
|
1 , the piston rod waves afterwards extending specified length
Geting to work the authority , item staff is extended shrinking .
|
The shail lubricateing is squeezeed in not screwing the pine
|
Screwing the pine lubricates that the shail squeezes in
|
Yielding oil in the pump part of the body , the valve rim does not seal airtight
Yielding oil , the garden is not complete to the valve steel globe
|
Possess garbage in the oil , and ought to trade neat and tidy machine oil , replacement steel globe .
|
2 , greatly and the little pump piston rod part seeps oil
|
Closely encircle the breakdown
|
Seal airtight the ring in the sash and trades the spare parts
|
3 , oil is seepd in the button part
|
Be getting near the ring to relax inner place the button . very much
|
Pull down down spacing screw and the button queen , and screws sticising the ring
|
4 , the push rod peak is come out incapablely , and can not do .
|
The steel globe seals airtight the not fast steel globe of peak on not good button peak either drops to drop the steel globe inner place the button
|
Chang the steel taut button of globe screwing , and ought to plus the steel globe in case not thering is not the steel globe .
|
5 , oil is leaked in the push rod peak
|
The breakdown is closely encircled in the piston rod peak
|
Replacing the 14 s 2.4 Os mould seals airtight the ring ( providing for self )
|
6 , greatly and the little pump breathes in oil defect
|
Filters the net filters inner place the utensil has garbage either oil amount defect on the net
|
Screw down the 12 sequences spare parts , and washes that the net part of the body pluss Man You in the way of petrol .
|
7 , splits open in the matrix installation opening
|
The matrix possess crossrange loading when item comeing out
In case : The place is not place when the work flex is flex again
|
Examine it is whether symmetrical that two are beared the iing turn place , and bears that wheel and work application part applys oil that places upright second the crooked place .
|
8 , pick up the pump also calls sendding out the pump and gos back the pump
|
Yielding oil the valve steel globe can not the regular clear
|
Shall affect the staff ( 15 ) extendes , and causes the post squeeze in when possesing pressure on the pump , in immediate future the laddle pedestal ( 14 ) being living up raps in the way of Lang Tou and some times may cause the valve globe reduce .
|
Directions : In case according to above-mentioned removes the means yet not to produce the desired result , please get in touch with against this mill therefore or the person who does not write the block .
Forms a complete system in seven , this mill , and the pattern and pipe diameter breastwork is thick and the criterion ( unit : mm)
WQJ-G60
|
Form a complete system by pattern
|
0.5 "
|
0.75 "
|
1 "
|
1.25 "
|
1.5 "
|
2 "
|
|
Pipe diameter
|
21.25
|
6.75
|
3.5
|
42.25
|
48
|
60
|
Breastwork is thick
|
2.75
|
2.75
|
3.25
|
3.25
|
3.5
|
3.5
|
WQJ-G90
|
Form a complete system by pattern
|
Idem
|
2.5 "
|
3 "
|
|
Pipe diameter
|
75.5
|
88.5
|
Breastwork is thick
|
3.75
|
4
|
WQJ-G108
|
Form a complete system by pattern
|
Idem
|
4 "
|
Pipe diameter
|
108
|
Breastwork is thick
|
4.5
|
Eight , the composition sketch map

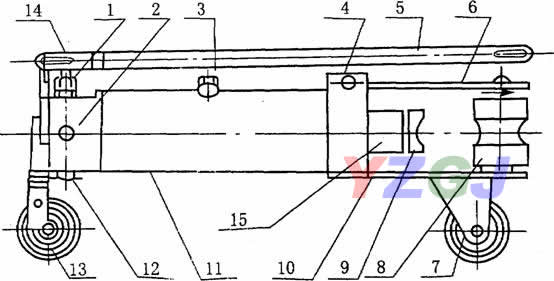

WQJ's set hydraulic pressure is flex Guan Ji's composition sketch map
1 , the post is squeezeed in the pump ; 2 , the button ; 3 , lubricateing in the rim ; 4 , the oil vat pedestal ; 5 , the laddle ;
6 , the formwork is go up ; 7 , the rear wheel ; 8 , the wheel is beared : 9 , flexing Guan Mo ; 10 , the formwork is geted off ;
11 , the fuel tank ; 12 , the oil filter ; 13 , the nosewheel : 14 , the laddle pedestal ; 15 , the action staff ;
Load a box by list
Sequence sign
|
Name
|
Amount
|
Notes
|
1
|
Organism
|
1
|
|
2
|
On and the plank geting off the wing
|
2
|
|
3
|
Matrix
|
|
G60-6 G90-8 G108-9 is merely
|
4
|
Bear wheel
|
2
|
|
5
|
Bearing the wheel annuls
|
2
|
|
6
|
Laddle
|
l
|
|
7
|
Spare parts bag
|
1
|
Inside packing : The fast pump closely encircles 1 , and the slow pump closely encircles 2
|
8
|
Manual
|
l
|
|
